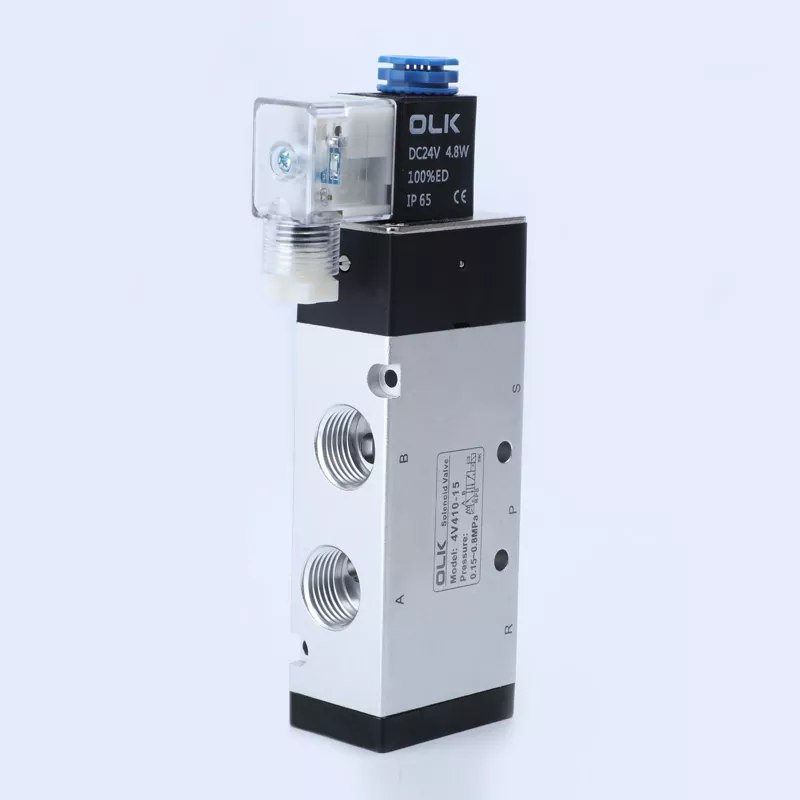

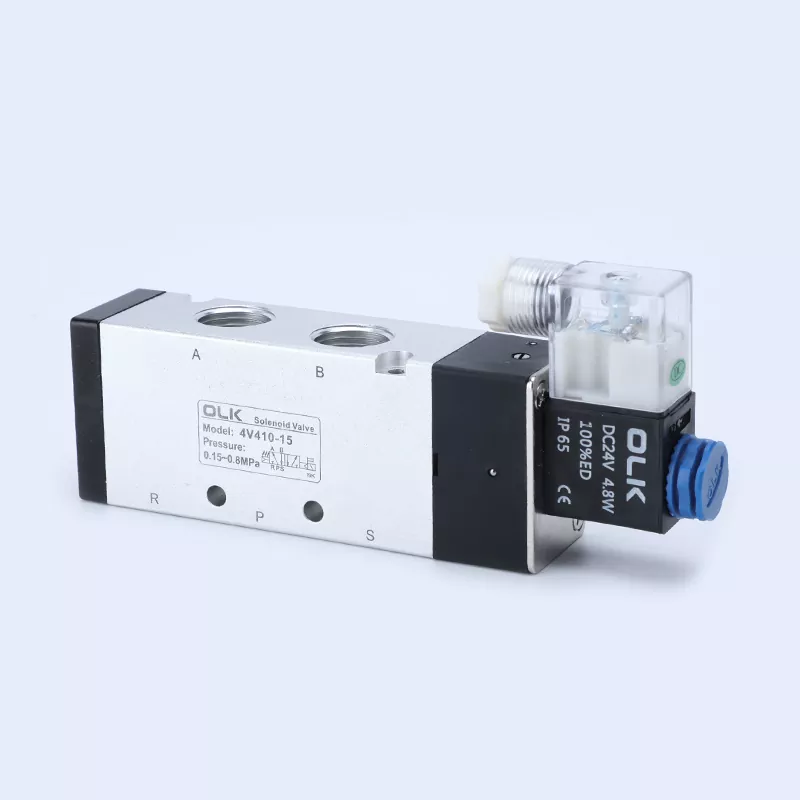

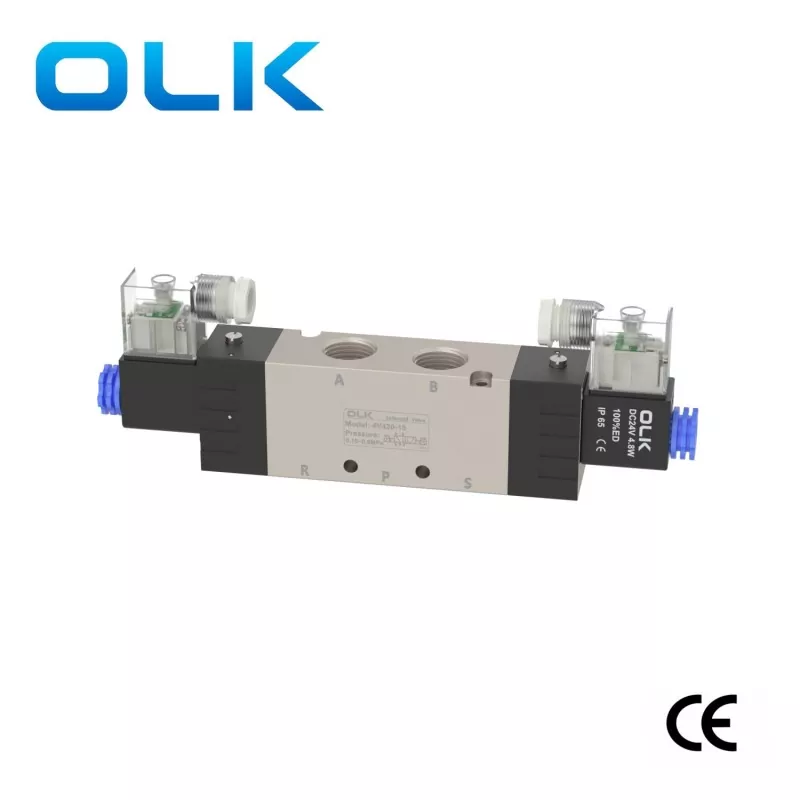

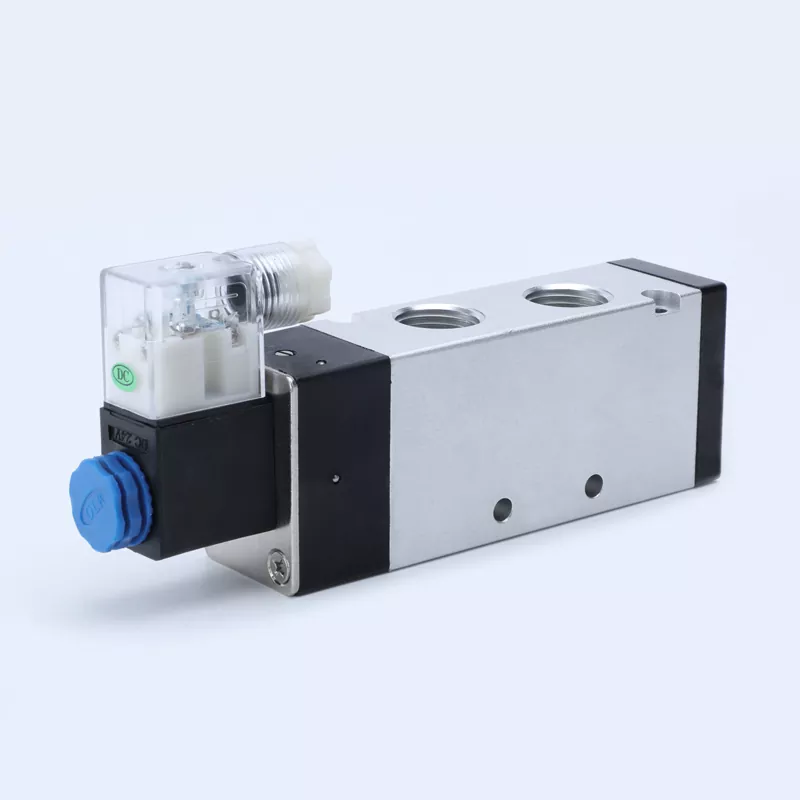

OLK 4V400 Solenoid Valve 5 Way, 2 position 5way or 3 position 5 way pneumatic solenoid valve, The size of the 4V400 series solenoid valve is the largest model. The interface specification is usually 1/2 ". The surface is made of high-quality aluminum alloy raw material, which runs smoothly and responds quickly. It has strong stability and precise polishing treatment without wear marks. It uses sufficient pure copper coils, which are not easy to overheat and have a longer and more durable service life.
A system that is suitable for high traffic demand through the highest traffic. Suitable for scenarios such as heavy equipment and large pneumatic systems.
|
Ordering Code |
|
|
|||
|
|
|
|
|||
|
4V |
4 |
10 |
15 |
AC110V |
|
|
Model |
Code |
valve type |
port size |
voltage |
Explosion proof coil |
|
4v:sports2(3)position solenoid valve |
4:400 series |
10:single solenoid 5/2 way |
15:G1/2 |
AC220V |
Non:Din type |
|
|
|
20:double solenoid valve 5/2 way |
|
DC24V |
I:Line type |
|
|
|
30C:double solenoid vlave5/3way closed center |
|
AC110V |
|
|
|
|
30E:double solenoid vlave5/3way exhaust center |
|
AC24V |
|
|
|
|
30P:double solenoid valve 5/3 way pressure center |
|
DC12V |
|
|
Model |
4V410-15 |
4V420-15 |
4V430C-15 |
4V430E-15 |
4V430P-15 |
|
Working medium |
Air（Filter through a filter screen of over 40μm） |
||||
|
Action mode |
Internal Pilot Type |
||||
|
port size |
Inlet=Outlet=Exhaust Port=G1/2 |
||||
|
Effective cross-sectional area |
50.0mm²（Cv=2.79） |
30.0mm²（Cv=1.68） |
|||
|
Positions |
5/2 Port |
5/3 Port |
|||
|
Pressure range |
0.15-0.8 MPa (21-114psi) |
||||
|
Proof pressure |
1.5MPa (215psi) |
||||
|
Working Pressure |
‘-20-70℃ |
||||
|
Body Material |
Aluminum Alloy |
||||
|
Lubrication |
No Need |
||||
|
Max.Operating Frequency |
3 times/second |
||||
|
Weight |
590g |
720g |
770g |
||
