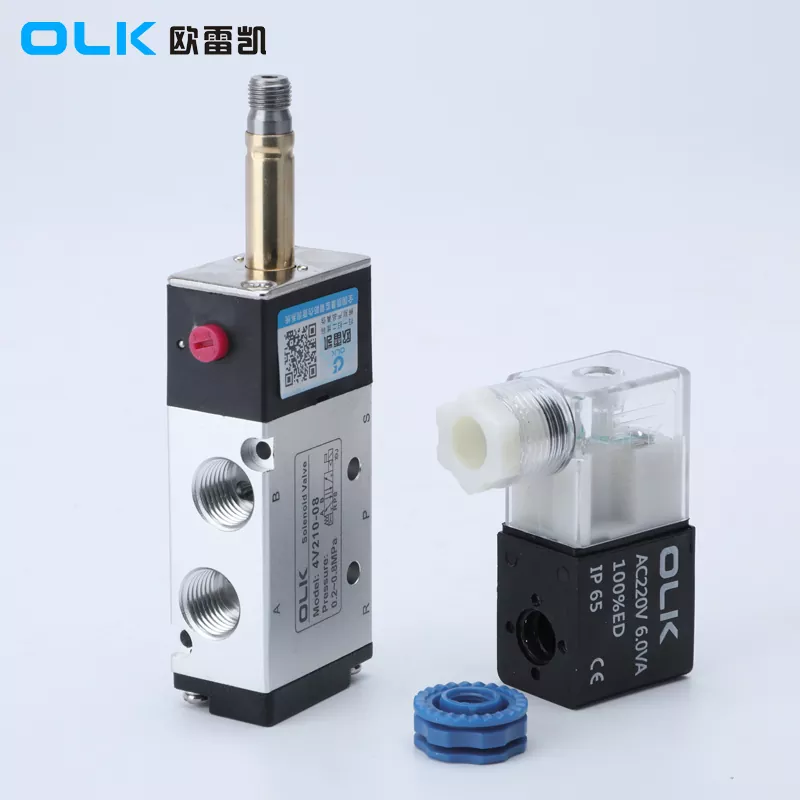

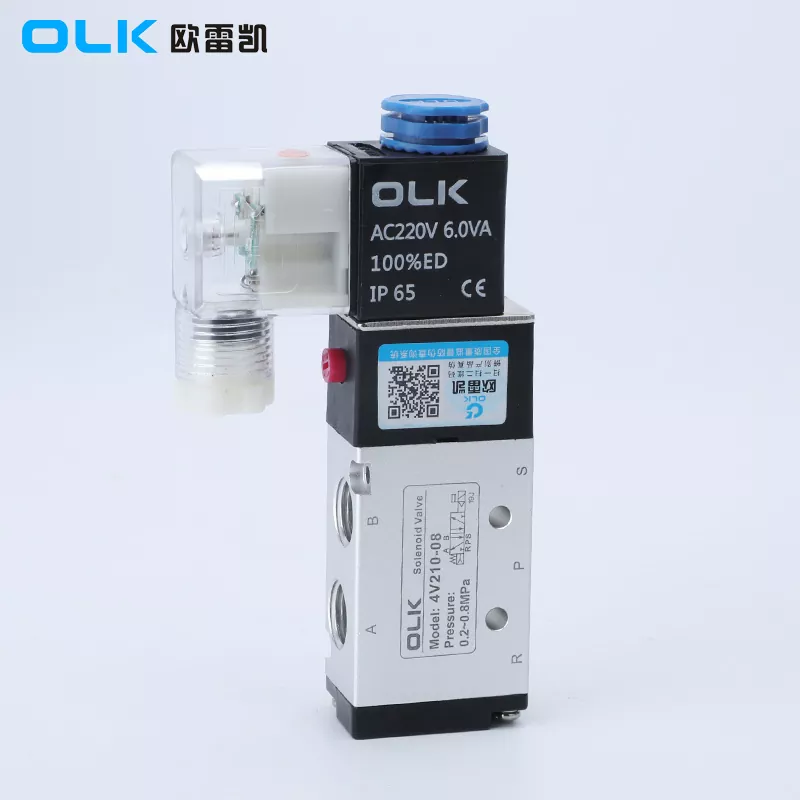

OLK 4V200 Solenoid Valve 5 Way, 5/2 wayand 5/3way pneumatic solenoid valve.The intake and exhaust ports are divided into G1/4 and G1/8. The gas flow rate passing through is suitable for medium-sized pneumatic systems. It can be integrated with the valve island base to save installation of control components.The most widely used scenarios include automatic packaging machinery, soda machines, automatic sorting machines, etc. Ouleikai 4V210-08 is made of high-quality aluminum alloy raw materials and excellent durability, with an annual production capacity of up to two million. It is just our star popular product

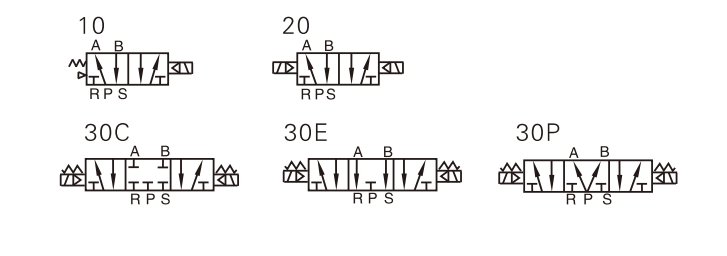

4V200 series symbol:
|
Ordering Code |
|
|
|||
|
|
|
|
|||
|
4V |
2 |
10 |
6 |
AC110V |
|
|
Model |
Code |
valve type |
port size |
voltage |
Explosion proof coil |
|
4v:sports2(3)position solenoid valve |
2:200 series |
10:single solenoid 5/2 way |
06:G1/8 |
AC220V |
Non:Din type |
|
|
|
20:double solenoid valve 5/2 way |
06:G1/4 |
DC24V |
I:Line type |
|
|
|
30C:double solenoid vlave5/3way closed center |
|
AC110V |
|
|
|
|
30E:double solenoid vlave5/3way exhaust center |
|
AC24V |
|
|
|
|
30P:double solenoid valve 5/3 way pressure center |
|
DC12V |
|
|
Model |
4V210-06 4V220-06 |
4V230C-06 4V230E-06 4V230P-06 |
4V210-08 4V220-08 |
4V230C-08 4V230E-08 4V230P-08 |
|
Working medium |
Air（Filter through a filter screen of over 40μm） |
|||
|
Action mode |
Internal Pilot Type |
|||
|
port size |
Inlet=Outlet=Exhaust Port=G1/8 |
Inlet=Outlet=G1/4 Exhaust Port=G1/8 |
||
|
Effective cross-sectional area |
14.0mm²（Cv=0.78） |
12.0mm²（Cv=0.67） |
16.0mm²（Cv=0.89） |
12.0mm²（Cv=0.67） |
|
Positions |
5/2 Port |
5/3 Port |
5/2 Port |
5/2 Port |
|
Pressure range |
0.15-0.8 MPa (21-114psi) |
|||
|
Proof pressure |
1.5MPa (215psi) |
|||
|
Working Pressure |
‘-20-70℃ |
|||
|
Body Material |
Aluminum Alloy |
|||
|
Lubrication |
No Need |
|||
|
Max.Operating Frequency |
5 times/second |
3 times/second |
5 times/second |
3 times/second |
|
Weight |
4V210-06 : 220 g 4V220-06 : 320 g |
360 g |
4V210-08 : 220 g 4V220-08 : 320 g |
360 g |
FAQs:
What is the interface diameter of the 4V210-08 solenoid valve?
The inlet and outlet are G1/4, and the exhaust port is G1/8
The function of a BSL tower muffler/BSLM flat head muffler ?
BSL tower muffler/BSLM flat head muffler can effectively reduce noise and prevent dust from entering solenoid valves
How to Maintain and Service a Solenoid Valve?
In order to extend the service life of the 4V200 solenoid valve, lubrication is supplied through an oil mist device during long-term use to avoid damage to the internal components of the solenoid valve caused by prolonged operation and prolong its service life.
What is the function of the button below the solenoid valve coil?
The 4v210 solenoid valve button is ‘Manual override’ which used to manually switch the valve core and switch the air outlet
Will the coil block the port?
The coil can be removed or rotated by unscrewing the blue OLK-branded coil nut.
