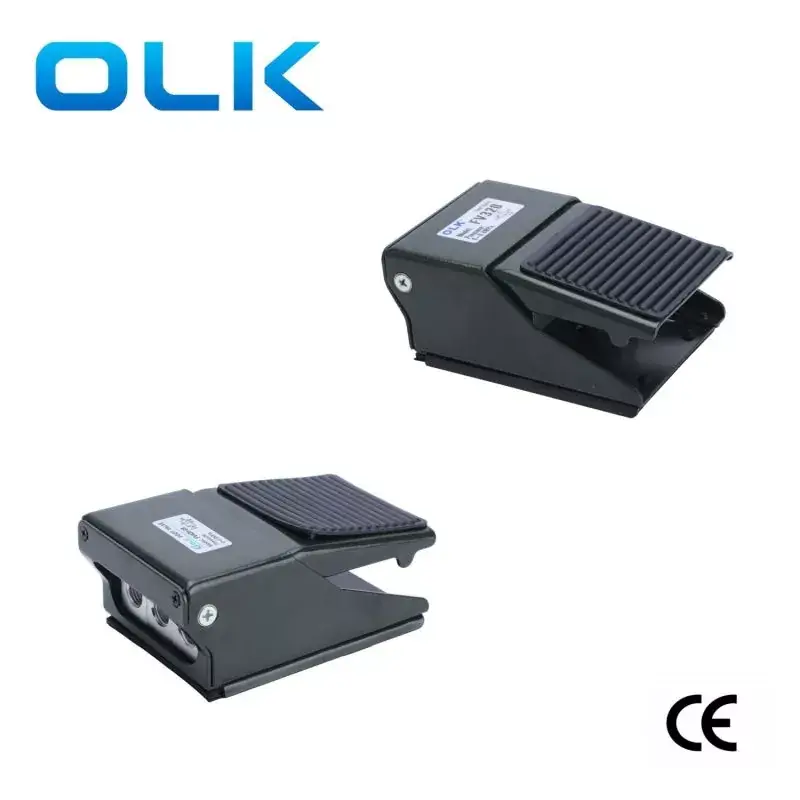

OLK China pneumatic manufacturer good FV320/420 Series Foot Valve 3 Way 4 Way. FV320/420 foot pedal valve belong to the sinlge-action.The feature smoth stepping wihout sticking and air leakage.Besides it without easy deformatino,excellent corrosion and wear resistance.

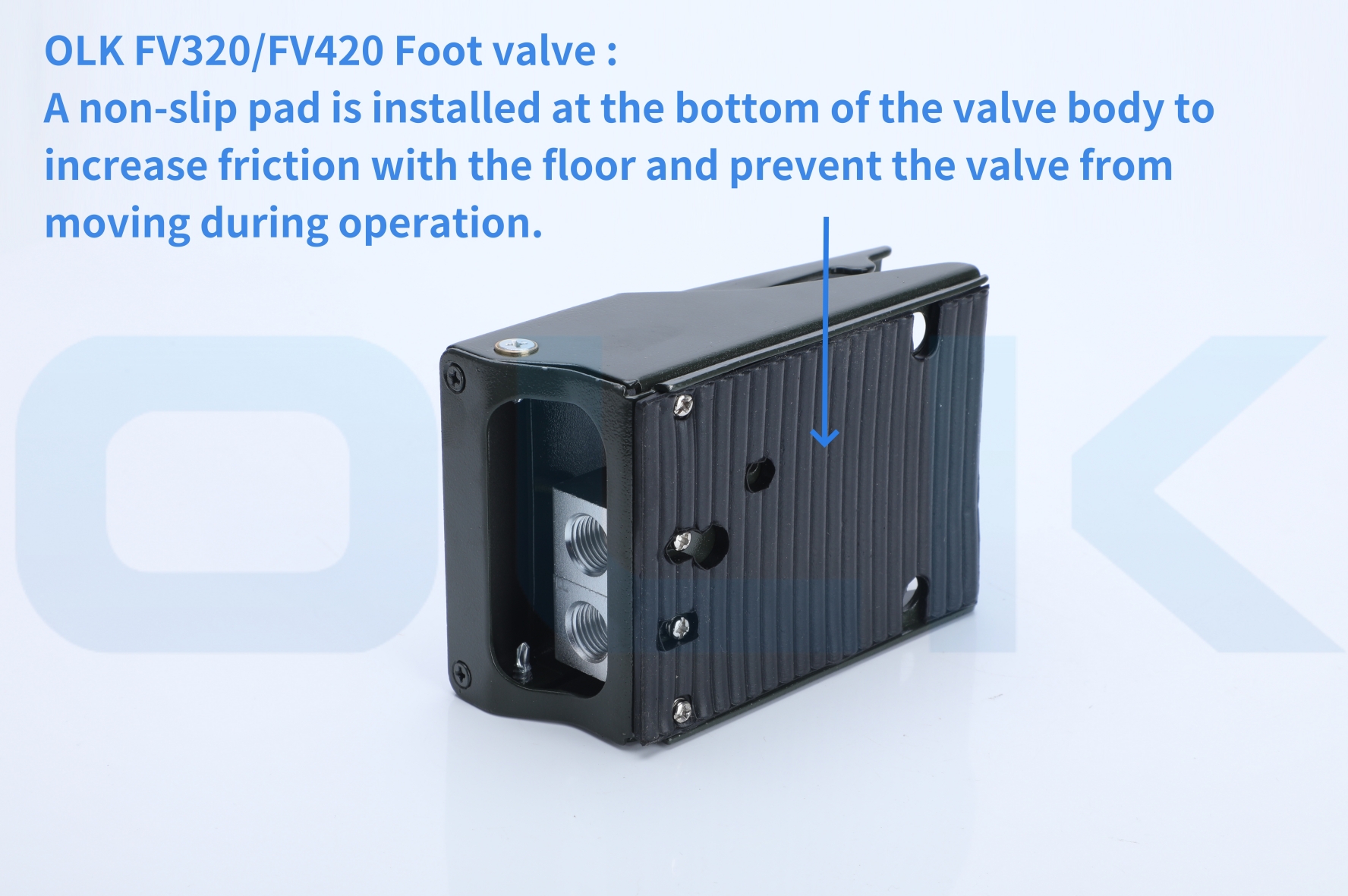

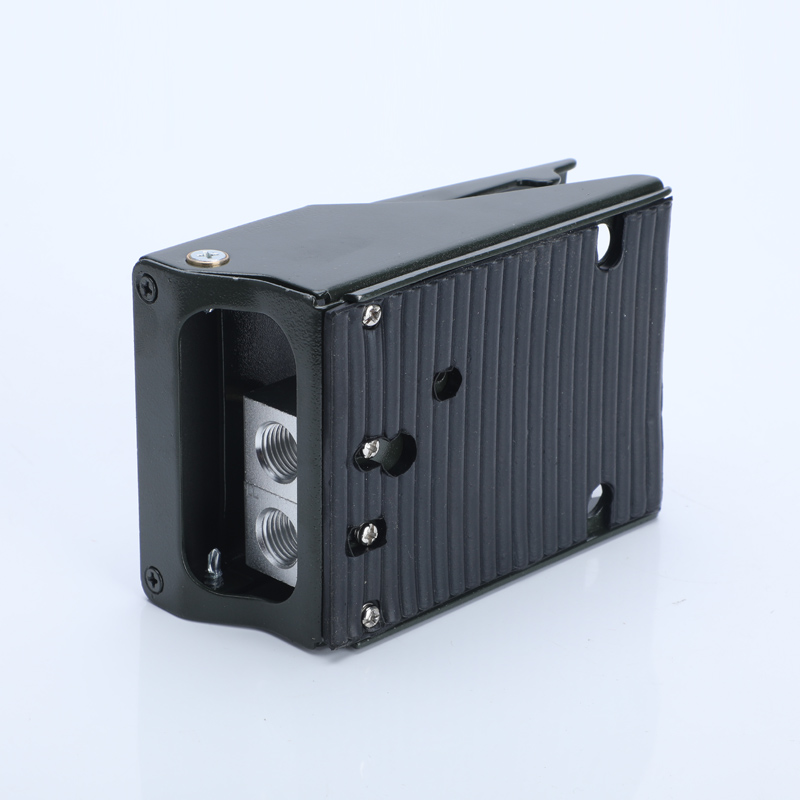

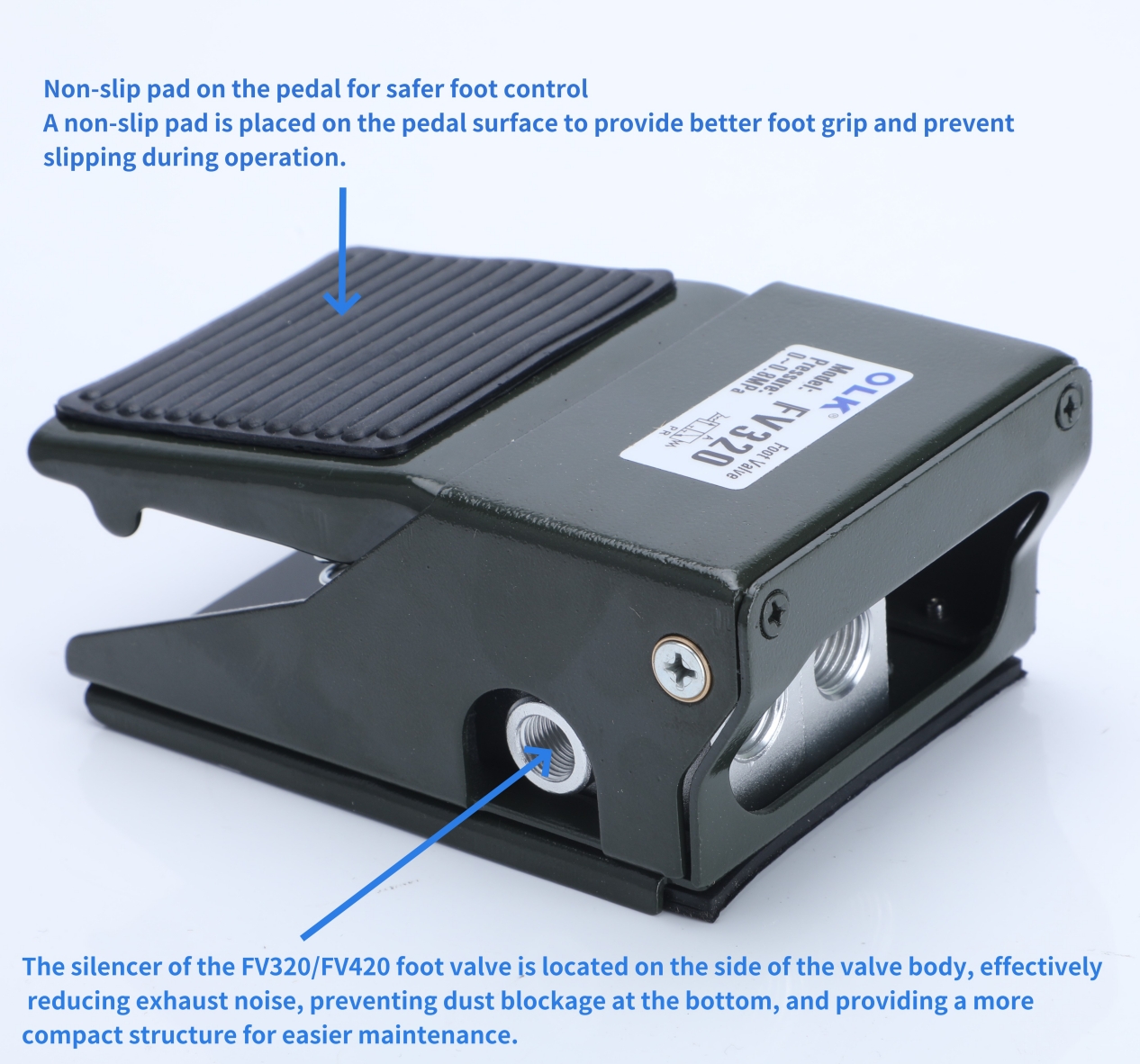

Workshop staff use their feet more easily because the OLK designed anti slip foot pads increase friction and durability.FV420 padel valve ensuring a long serive life.

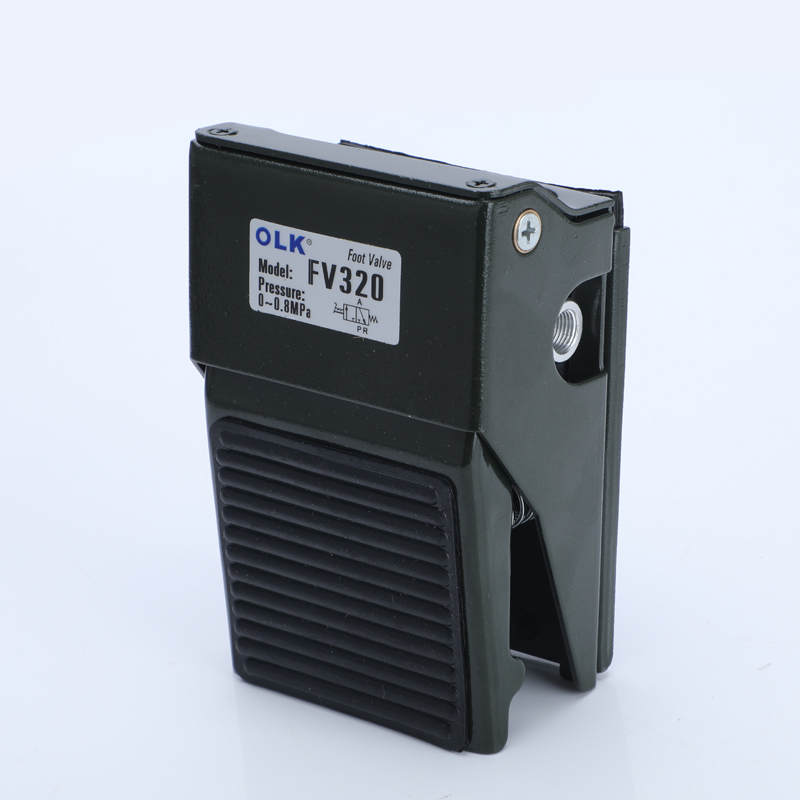

If the user need to choose 2 posion 3 way or 2 position 4 way working modes,he can make FV320 pedal valve operated foot switch to achive directions.During use, please pay attention to the position and status of the foot pedal valve to ensure correct operation and avoid malfunction due to misuse. They are suitable for industries such as semiconductor manufacturing, print tension control, and automation control.
Symbol:
|
Ordering code |
|
|
FV |
420 |
| MODEL: | PORT SIZE: |
| FV :Foot valve 3 way /4 way | 320:2 position 3 way |
|
|
420:2 position 4 way |
|
Model |
FV320 |
FV420 |
|
Working medium |
Air（Filter through a filter screen of over 40μm） |
|
|
Action mode |
Foot control direct action normally closed type |
|
|
Port Size |
06:G1/8 |
08:G1/4 |
|
Position |
2/3 Port |
2/4 Port |
|
Pressure range |
0-0.8MPa (0-114psi) |
|
|
Proof pressure |
1.5MPa(15bar) (215psi) |
|
|
Woking Pressure |
‘-5-60℃ |
|
|
Body Material |
Aluminum Alloy |
|
|
Lubrication |
NO NEED |
|
