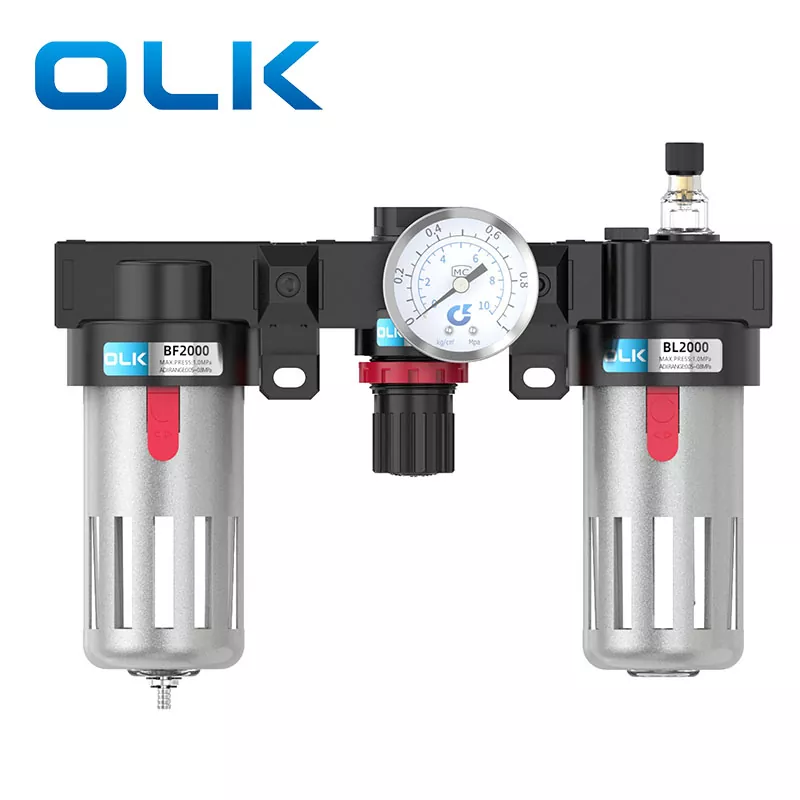

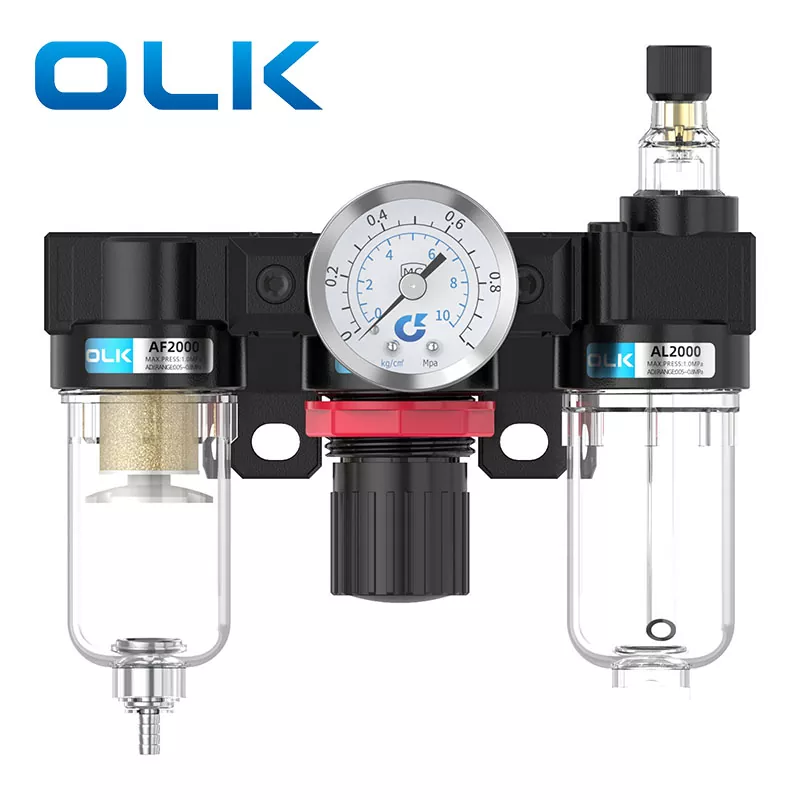

Airtac AC BC Series F R L -kombination

Model:AC2000 BC2000

Som den professionella tillverkningen vill OLK Pneumatic ge dig Airtac AC BC Series F R L -kombination. Och OLK kommer att erbjuda dig den bästa servicen efter försäljning och i rätt tid.

Skicka förfrågan

Produktbeskrivning

AIRTAC AC BC Series F R L Combination Parameters：

MODEL	AC1500	AC2000	BC2000	BC3000	BC4000
Air filter	AF1500	AF2000	BF2000	BF3000	BF4000
Pressure regulator	AR1500	AR2000	BF2000	BF3000	BF4000
Air lubricator	AL1500	AL2000	BL2000	BL3000	BL4000
Port size	G1/8	G1/4	G1/4	G3/8	G1/2
Working medium	AIR
Adjust pressure range	0.05-0.085Mpa(7-121psi)
Maximum adjustable pressure	0.95Mpa(135psi)
Proof pressure	1.5 Mpa (213 PSI）
temperature range	5-60 ℃
Filter precision	40μm
capacity of oil bowl	15CC		60CC
capacity of water bowl	25CC		90CC
weight（kg)	0.26		0.4
Material :	Main body :Aluminum alloy
	Oil bowl:PC
	AC1500-AC2000（without bowl guard);BC2000-BC4000(with PA66 bowl guard)

airtac BC symbol

Ordering code
AC	2000	A
MODEL	port size	Drain type
AC:A series lubricator(small)	1500:G1/8	Blank:Semi-auto drain
BC:B series lubricator(big)	2000:G1/4	D:Manual drain
	3000:G3/8	A:Auto drain
	4000:G1/2	AC:no Auto drain
